Description:
ADH300DE is a high-performance DC contactor designed specifically for the control and protection of high-power DC circuits. Its core design adopts high-strength epoxy resin sealing, and is filled with inert gas mainly composed of nitrogen inside, which has excellent electrical isolation, arc extinguishing ability, and environmental protection performance. The main contact of this contactor has a long-term current carrying capacity of 300A (85 ° C), a maximum switching voltage of up to 1000VDC, and can withstand short-circuit current surges of up to 6000A (5ms). It offers multiple coil voltage specifications (10-36V DC) and installation methods (bottom or side installation, optional with/without auxiliary contacts) to meet the installation and electrical control needs of different application scenarios. The product has passed multiple international and regional safety certifications such as CE, CCC, TUV, etc.
Applications：
Photovoltaic energy storage system: used for controlling the on/off of the charging and discharging circuits of photovoltaic arrays and energy storage battery packs.
Electric vehicles (EVs) and charging facilities: as the main circuit relay, used for pre charging of high-voltage batteries inside the vehicle, main positive/main negative control, or output control of DC charging stations.

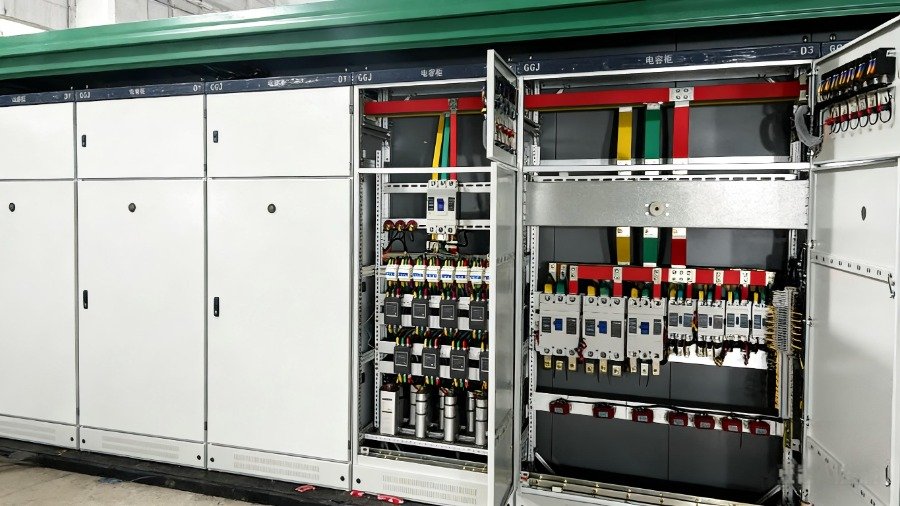

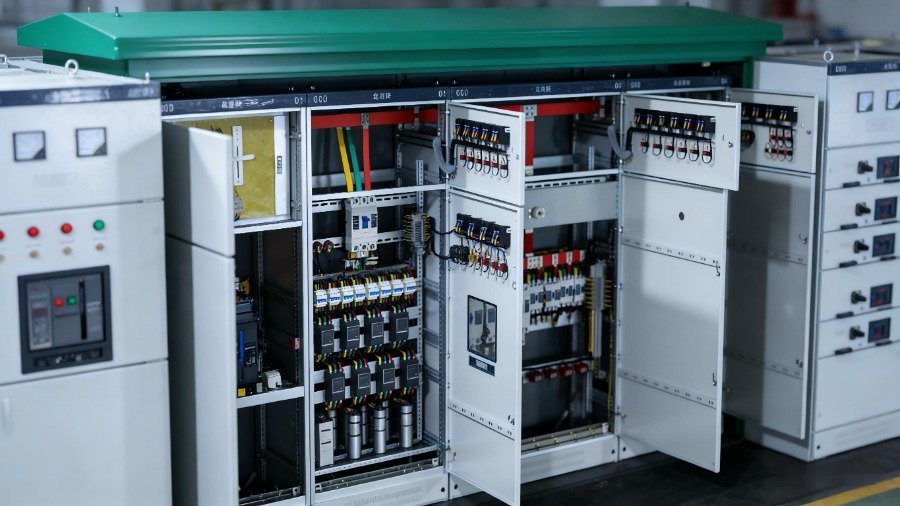

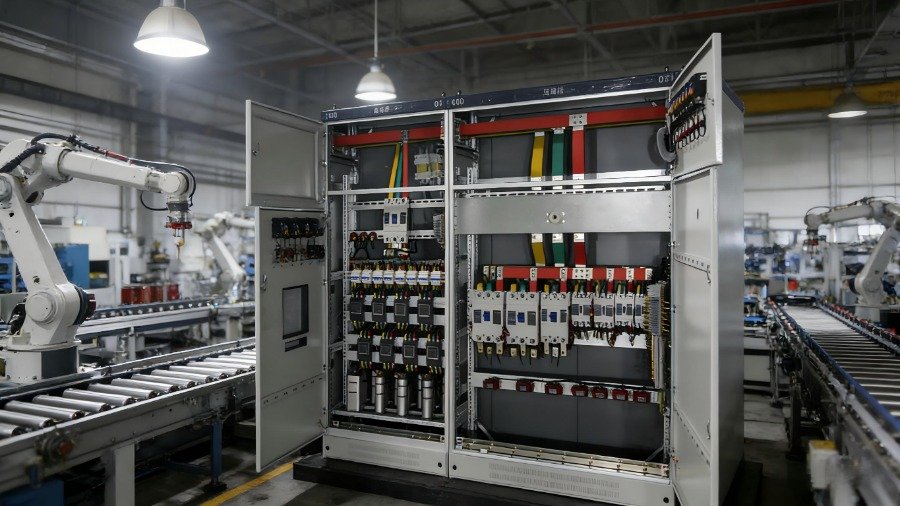

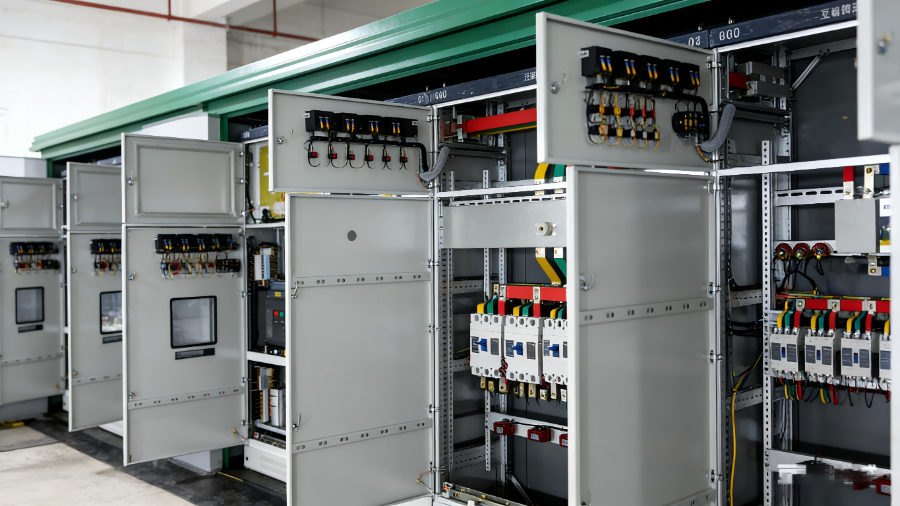

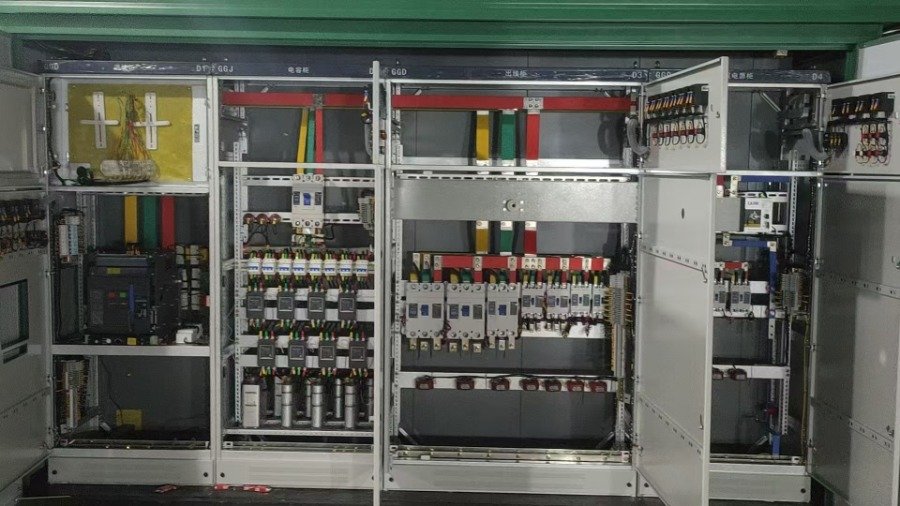

Industrial power supply and distribution: used for input/output control and protection of high-power DC power supplies, uninterruptible power supplies (UPS), frequency converters, etc.
Special vehicles and construction machinery: high-voltage distribution systems for equipment such as electric forklifts and mining trucks.
 |
 |
 |
 |

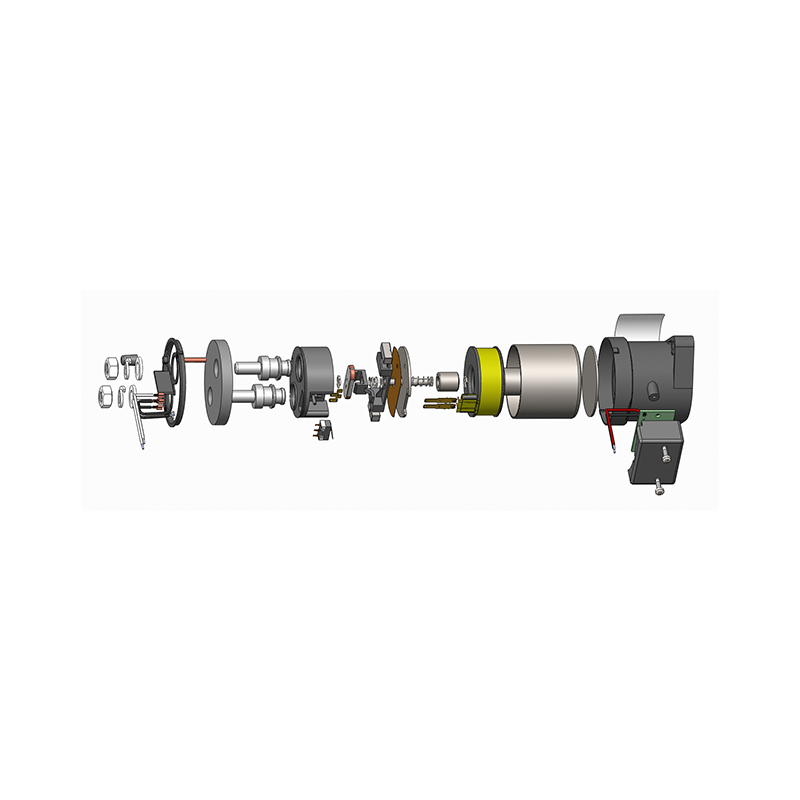

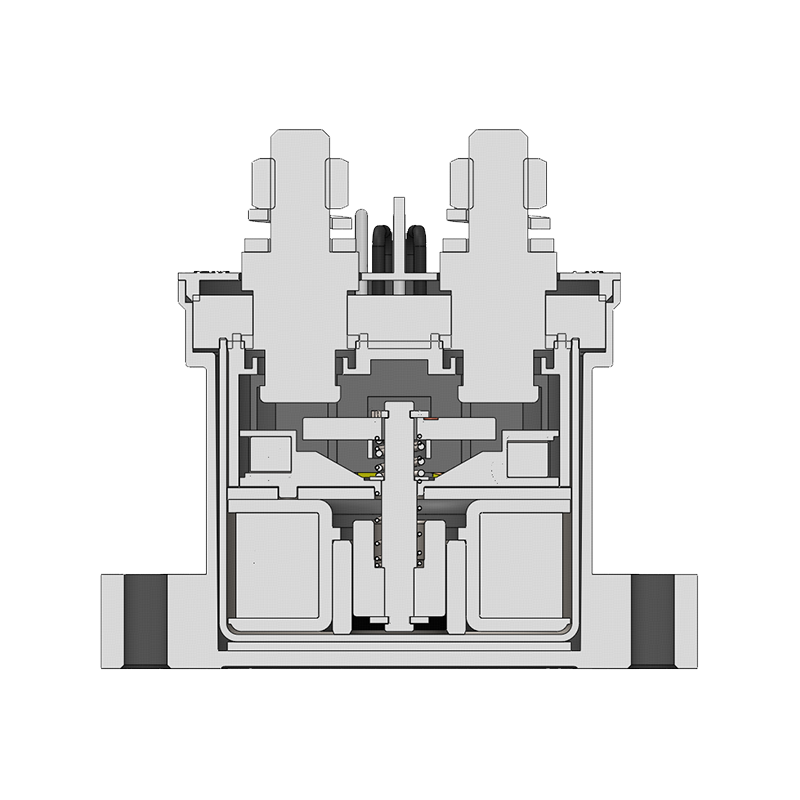

The working principle of the ADH300DE DC contactor is based on electromagnetic effects. When the rated voltage (10-36V DC) is applied to the coil (terminals A1/A2), the coil generates electromagnetic force, which drives the internal
moving iron core to engage with the stationary iron core, thereby driving the main contact (1NO normally open contact) to close and connect the main circuit. When the coil loses power, the electromagnetic force disappears. Under the
action of the reaction spring (or permanent magnetic force), the moving iron core returns, and the main contact quickly disconnects, cutting off the circuit. The built-in inert gas (mainly nitrogen) can quickly cool and extinguish the arc
when the contact is disconnected, protecting the contact. Some models (such as coil types E, W, D) also have built-in energy-saving circuits to reduce the power consumption of the coil after being pulled in.Â
The quality and reliability of the ADH300DE DC contactor come from its multiple guarantees: it is sealed with epoxy resin and filled with inert gas to fundamentally prevent arc leakage and contact oxidation, ensuring high safety (no fire, no explosion) and stable low contact resistance. The product has excellent electrical lifespan (such as 1000VDC/300A on-off 10000 times) and strong overload tolerance (such as withstanding 6000A instantaneous current), with a mechanical lifespan of up to 200000 times. Its working temperature range is wide (-40 ℃~85 ℃), and it can resist vibration and impact, adapting to harsh environments. This product has passed safety certifications such as CE, CCC, TUV, etc., and complies with multiple international and national electrical standards, providing reliable quality endorsement for applications.
High current carrying capacity, small size: Achieve a rated current carrying capacity of 250A in a compact volume, saving installation space.
Extremely low power consumption: The coil maintains a maximum power consumption of only 2.5W, which is energy-saving and efficient, reducing heat loss.
High reliability design:
Wide voltage range: The main contact switching voltage is 12-1000VDC, covering multiple high-voltage platforms.
Strong breaking ability: can cut off a maximum current of 2000A (320VDC).
Contact voltage reduction: At a current of 250A, the contact voltage drop is ≤ 80mV, and the conduction loss is small.
Long term service life: 300000 mechanical cycles, combined with electrical life curve, with a long service life under rated conditions.
High safety: high insulation resistance (≥ 100M Ω), strong dielectric withstand voltage, built-in surge protection design (some models), safer to use.
Flexible configuration: Two wide range coil voltages, 9-36V and 32-95V, are available for selection; The main contacts are available in screw type (A/H type) and screw type (C/D type), and can be equipped with auxiliary contacts; Supports two installation methods: flat (A) and horizontal (H), suitable for different application scenarios.
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
