LMZ Current Transformer – 150/5A, 0.5s Class, Protection & Metering

Description:

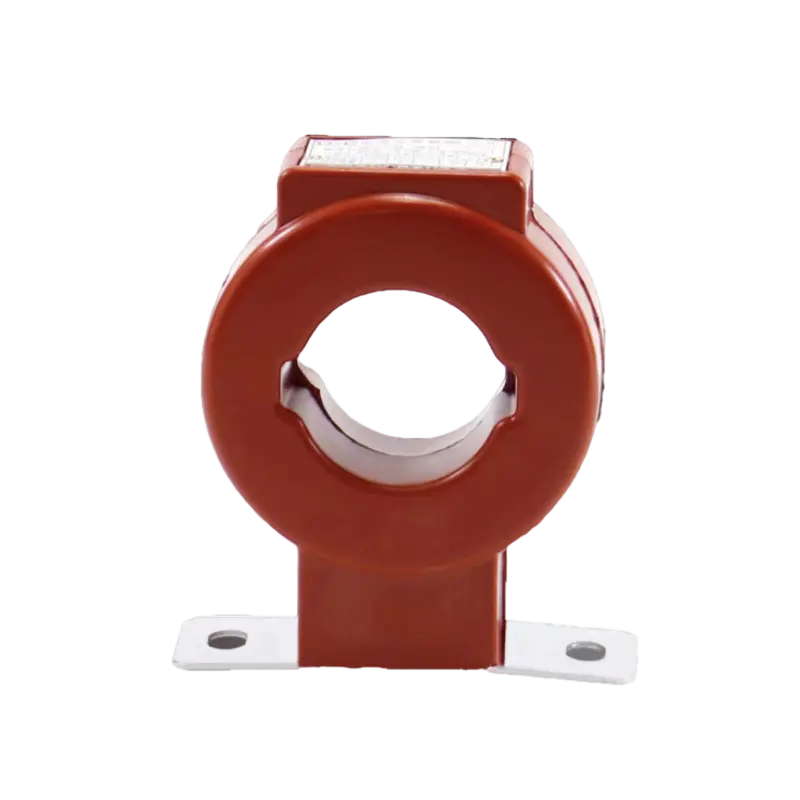

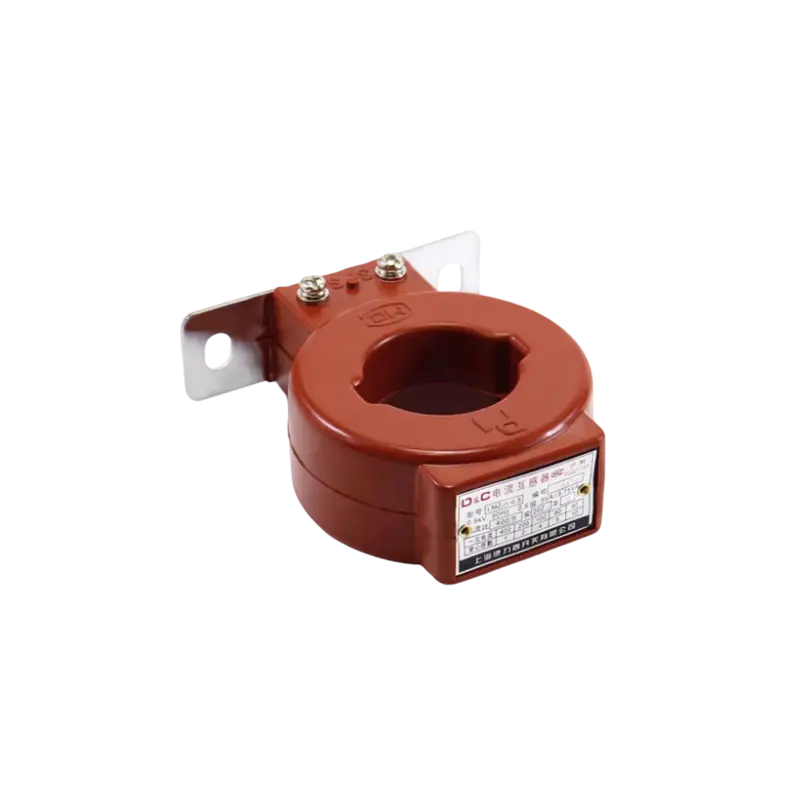

The MINGTUO LMZ Current Transformer (CT) is engineered for precise current measurement and reliable circuit protection in medium-voltage electrical systems. Constructed using advanced vacuum epoxy casting technology and fire-resistant composite materials, this robust CT delivers stable, high-accuracy performance in demanding industrial and utility applications. Its compact and durable design ensures long-term operation even under challenging environmental conditions.

Applications:

Electricity metering and energy management systems

Power distribution network monitoring

Relay protection circuits

Industrial automation control

Renewable energy generation monitoring

Contact Us
Download (2 file)
Facebook
Description

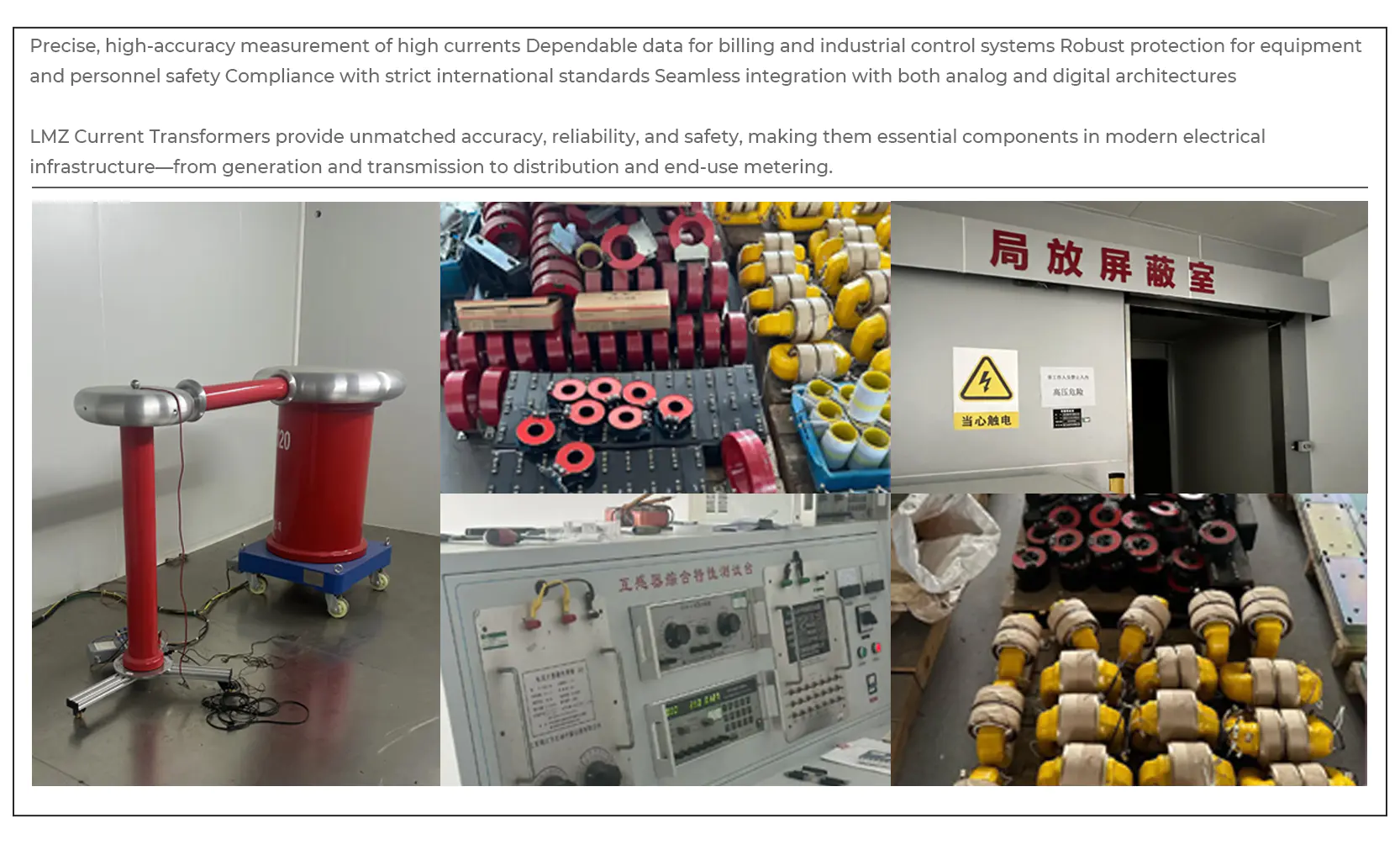

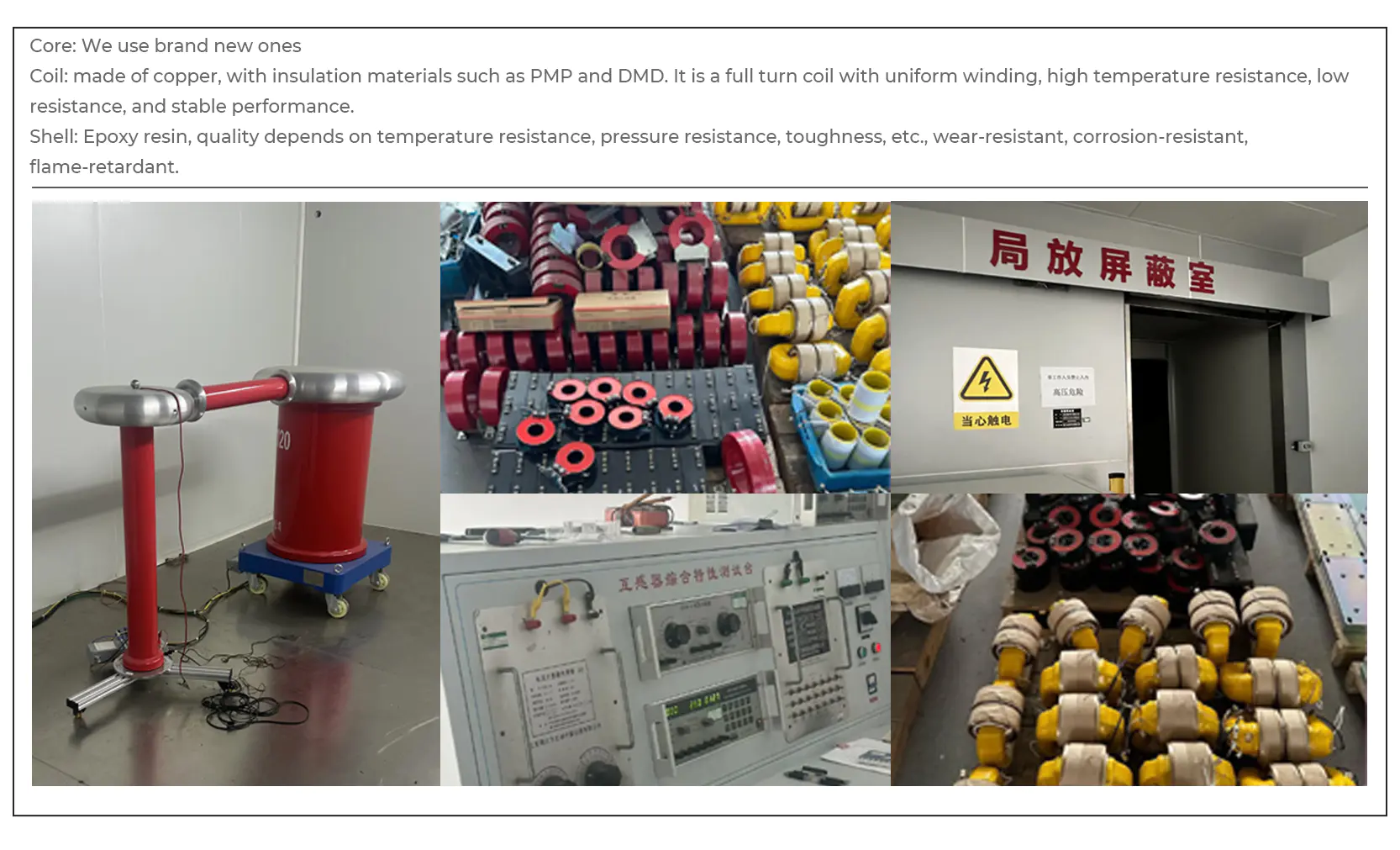

current winding workshop

current winding

partial discharge shielding room

core workshop

Convert a large current into a small secondary current, which is then fed to the controller and other control components. The magnitude of the primary current is determined by detecting the secondary current.

current winding workshop

current winding

partial discharge shielding room

core workshop
